Name: Rotor D 7-2.5 EURO
Brand: No brand
SKU: 00099889
Price: 2660 UAH
Availability: InStock

Rotor D 7-2.5 EURO

SKU: 00099889

51.00 EUR

Specification

Brand	No brand
Type	D 7-2.5
Application	For gypsum/gypsum-lime plaster, For light plastering, For lime-cement plaster < 3 mm, For clay plaster (dry), For clay plaster (earth-moist)
Working pressure	25 bar
Power at 400/200 rpm	At 400 rpm - 27 l/min
Features	The maximum fraction size is 3 mm

Description

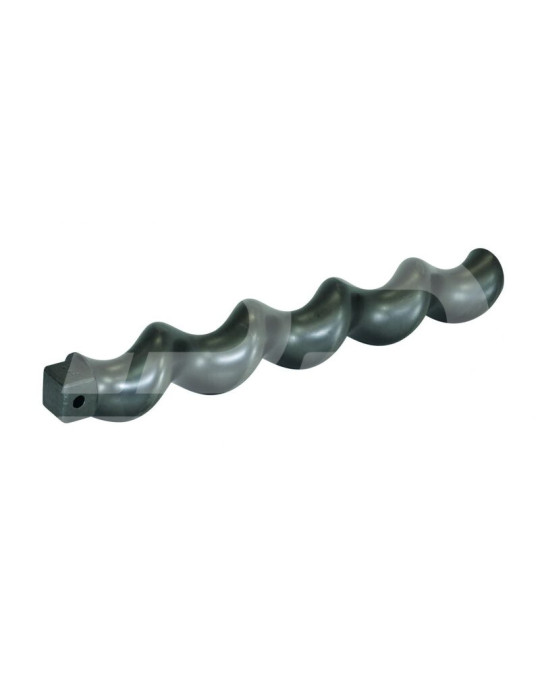

The D7-2.5 EURO rotor is a working component of a screw pump pair for plastering machines. It operates in conjunction with the corresponding D7-2.5 stator and ensures the movement of the paste mixture through the pump unit during rotation.

The D7-2.5 size type is widely used in plastering stations for pumping plasters, mortars, adhesives, and other mixtures with a maximum grain size of up to 3 mm. The rated performance for the appropriate pump pair is up to 27 l/min at 400 RPM and a maximum working pressure of up to 25 bar.

The rotor is made of steel and is designed to work in conditions of constant contact with the elastic working element of the stator. When replacing, it is important to select the rotor specifically for the corresponding version of the D7-2.5 stator and to check the compatibility of the pump pair.

Type: screw pump pair rotor

Size type: D7-2.5

Version: EURO

Material: steel

Maximum grain size of the material: up to 3 mm

Maximum working pressure: 25 bar

Performance of the pair: up to 27 l/min at 400 RPM

Purpose: for screw pump pairs

Application: plastering machines and solution pumps
